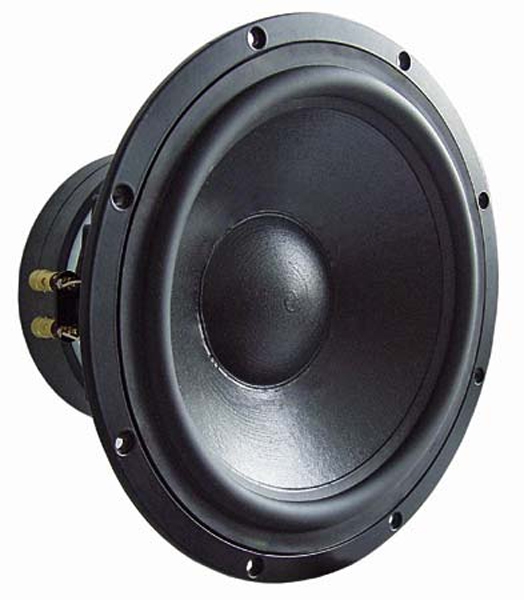

Visaton TIW 300

30 cm (12") high-end woofer with a black cellulose diaphragm, large-format magnet arrangement and a massive aluminium diecast basket.
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 5921364
Fabrikant: Visaton
€353,25 incl. BTW
Exclusief verzenden

30 cm (12") high-end woofer with a black cellulose diaphragm, large-format magnetarrangement and a massive aluminium diecast basket. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminium diecast cone to vent the spider from behind) losses and flow noise are minimised. The combination of the voice coil carrier made of capton and the large 65 mm voice coil allow extremely high volume levels.



Technical Data:
Rated power300 W
Maximum power600 W
Nominal impedance Z8 Ohm
Frequency responsefu–300 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)
Excursion limit+/-16 mm
Resonance frequency fs25 Hz
Magnetic induction1,1 T
Magnetic flux1800 µWb
Height of front pole-plate8 mm
Voice coil diameter65 mm
Height of winding23 mm
Cutout diameter288 mm
Net weight7 kg
D.C. resistance Rdc5,4 Ohm
Mechanical Q factor Qms4,59
Electrical Q factor Qes0,30
Total Q factor Qts0,28
Equivalent volume Vas160 l
Effective piston area Sd510 cm²
Dynamically moved mass Mms92 g
Force factor Bxl16.5 Tm
Inductance of the voice coil L1,7 mH



Kastsuggesties

Volume/PrincipleBR-Channelfb
50 liter Bass reflex1 x BR 25.5031 Hz
70 liter Bass reflex2 x  BR 25.5036 Hz
100 liter Bass reflex2 x BR 25.50 (7 cm lang)35 Hz
150 liter Bass reflex1 x BR 25.50 (3,5 cm lang)34 Hz

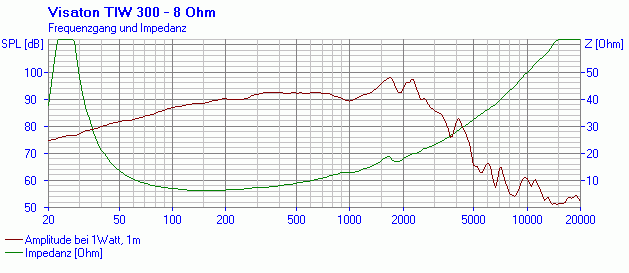

Frequentieverloop





Afmetingen



30 cm (12") high-end woofer with a black cellulose diaphragm, large-format magnetarrangement and a massive aluminium diecast basket. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminium diecast cone to vent the spider from behind) losses and flow noise are minimised. The combination of the voice coil carrier made of capton and the large 65 mm voice coil allow extremely high volume levels.



Technical Data:
Rated power300 W
Maximum power600 W
Nominal impedance Z8 Ohm
Frequency responsefu–300 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)
Excursion limit+/-16 mm
Resonance frequency fs25 Hz
Magnetic induction1,1 T
Magnetic flux1800 µWb
Height of front pole-plate8 mm
Voice coil diameter65 mm
Height of winding23 mm
Cutout diameter288 mm
Net weight7 kg
D.C. resistance Rdc5,4 Ohm
Mechanical Q factor Qms4,59
Electrical Q factor Qes0,30
Total Q factor Qts0,28
Equivalent volume Vas160 l
Effective piston area Sd510 cm²
Dynamically moved mass Mms92 g
Force factor Bxl16.5 Tm
Inductance of the voice coil L1,7 mH



Kastsuggesties

Volume/PrincipleBR-Channelfb
50 liter Bass reflex1 x BR 25.5031 Hz
70 liter Bass reflex2 x  BR 25.5036 Hz
100 liter Bass reflex2 x BR 25.50 (7 cm lang)35 Hz
150 liter Bass reflex1 x BR 25.50 (3,5 cm lang)34 Hz





Frequentieverloop





Afmetingen
