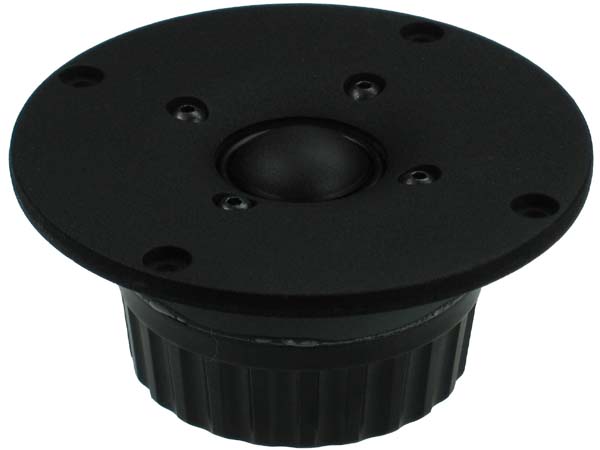

Seas Excel T25CF003

The T25CF003 is a 25mm fabric dome with moderately high efficiency. It is the
tweeter of choice for those who want the most precise and realistic reproduction of
the high frequency audio range.

A wide, soft polymer surround designed to give high stability without magnetic
fluid damping.

Flexible lead-out wires which ensure a good connection between voice coil and
terminals. This arrangement also helps to prevent lead breakage due to the large
excursions encountered when low crossover frequencies are used.

6 mm solid metal front plate with a slight loading characteristic which ensures
linear frequency response, and a stiff and stable connection to the cabinet.

A substantial injection-moulded rear chamber, with complex internal shape and
reinforcing ribs, which eliminate unwanted chamber resonances and reflections.

A double magnet system which increases sensitivity and provides better control
of the voice coil. This system also reduces the magnetic stray fields, making the
T25CF003 an ideal choice in high end A/V applications.

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

Specs

Electrical Data

TS Parameters

Power Handling

Voice Coil and Magnet Parameters

Misc

Frequency

Mechanical Dimensions
