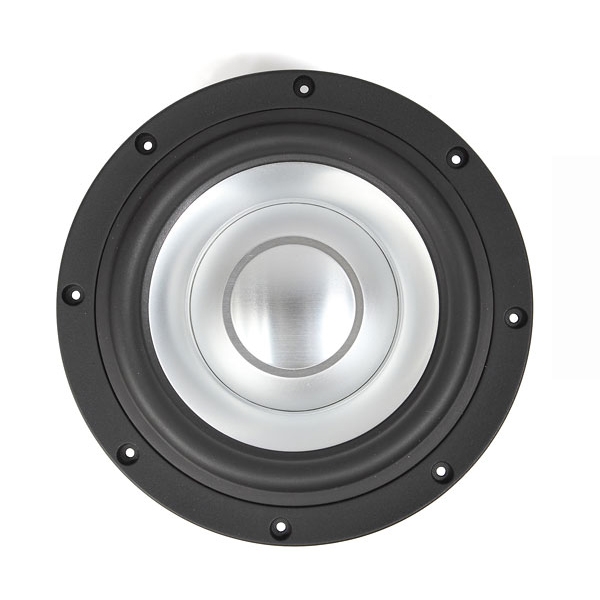

SB-Acoustics SW26DAC76-4

FEATURES

• Unique patented long through shallow design
• Vented cast aluminum chassis for optimum strength and low compression
• Dual rigid aluminum cone structure
• Non-conducting fiber glass coil former for minimum damping
• Shorting ring in motor system for reduced distortion
• 3 copper voice coil for improved power handling
• Long life insulated silver lead wires
• Powerful neodymium motor system

SPECS:

• Nominal Impedance 4 Ω
• DC resistance, Re 3.2 Ω
• Effective piston area, Sd 312 cm²
• Voice coil diameter 75.5 mm
• Voice coil height 30 mm
• Air gap height 6 mm
• Linear coil travel (p-p) 24 mm
• Magnetic flux density 1.0 T
• Magnet weight 281 g
• Net weight 3.43 kg
• Free air resonance, Fs 22 Hz
• Sensitivity (2.83V/1m) 86 dB
• Mechanical Q-factor, Qms 4.5
• Electrical Q-factor, Qes 0.51
• Total Q-factor, Qts 0.46
• Moving mass incl. air,Mms 134 g
• Force factor, Bl 10.8 Tm
• Equivalent volume, Vas 54 ltr.
• Compliance, Cms 0.39 mm/N
• Mechanical loss, Rms 4.1 kg/s
• Rated power handling* 200 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Je kunt alle uitgebreide technische gegevens vinden op het datablad, download dan onze PDF
