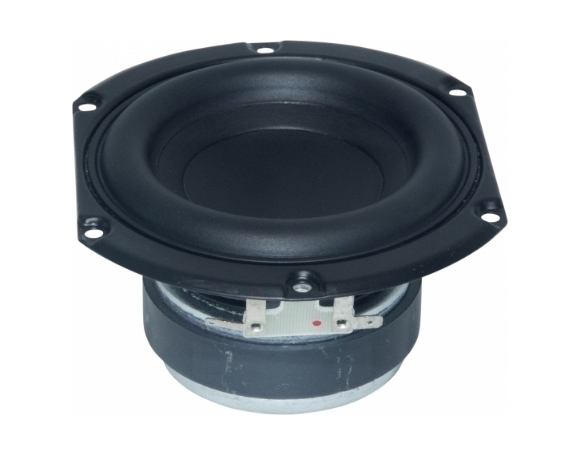

The SDS compact subwoofer family offers a low resonant frequency performance, ideally suited for compact sealed enclosures. This 4 inch 8 ohm member of the SDS family offers a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel cabinet, shaped to fit into narrow cabinets.

FEATURES

• Pressed Steel Basket
• Ferrite Magnet
• Paper Diaphragm
• NBR Rubber Surround
• Optimized for Sealed Enclosures

SPECS

• Transducer Size (Millimeters) 102 mm
• Impedance 8 Ω
• Resonance Frequency 66 Hz
• Qts = 0,48
• Sensitivity @ 1W/1m 83.1 dB
• Rated Noise Power 30 Watt
• Net Weight 0.74 kg

Als u het complete datablad wilt inzien, download dan onze PDF
