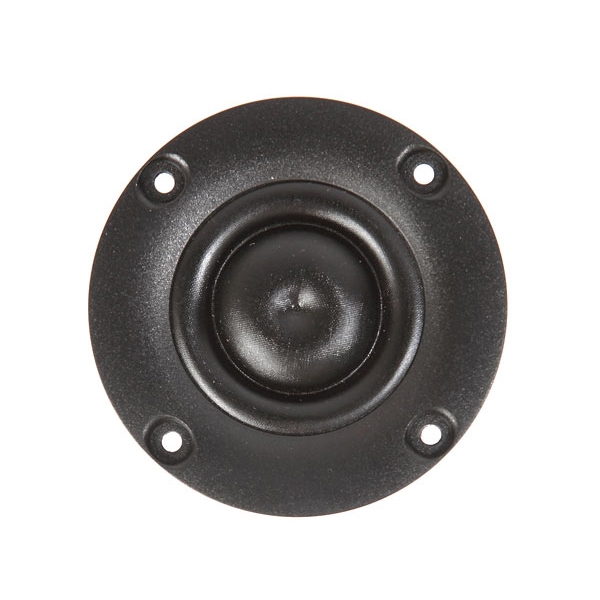

SB-Acoustics SB29RDNC-C000-4 / Fabric

30 mm 4 Ohm tweeter, neodymium magneet
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 1382311
Leveringsdatum: 1 - 2 werkdagen
Fabrikant: SB-Acoustics
€58,64 incl. BTW
Exclusief verzenden

FEATURES

  • Non-resonant diaphragm design for minimum high frequency break-up
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency
  • Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
  • Inherently shielded neodymium motor system
  • Internal pressure equalization and flow resistor for non-resonant coupling of cavities
  • Compact design

SPECS:

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.0 Ω
  • Voice coil inductance, Le 0.05 mH
  • Effective piston area, Sd 9.6 cm2
  • Voice coil diameter 29.0 mm
  • Voice coil height 2.0 mm
  • Air gap height 2.5 mm
  • Linear coil travel (p-p) 0.5 mm
  • Moving mass incl. air, Mms 0.45 g
  • Free air resonance, Fs 680 Hz
  • Sensitivity (2.83 V / 1 m) 94 dB
  • Mechanical Q-factor, Qms 1.2
  • Electrical Q-factor, Qes 0.72
  • Total Q-factor, Qts 0.45
  • Force factor, Bl 2.6 Tm
  • Rated power handling* 100 W
  • Magnetic flux density 1.2 T
  • Magnet weight 31 g
  • Net weight 0.17 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

Je kunt alle uitgebreide technische gegevens vinden op het datablad, download dan onze PDF
Product Informatie PDF
