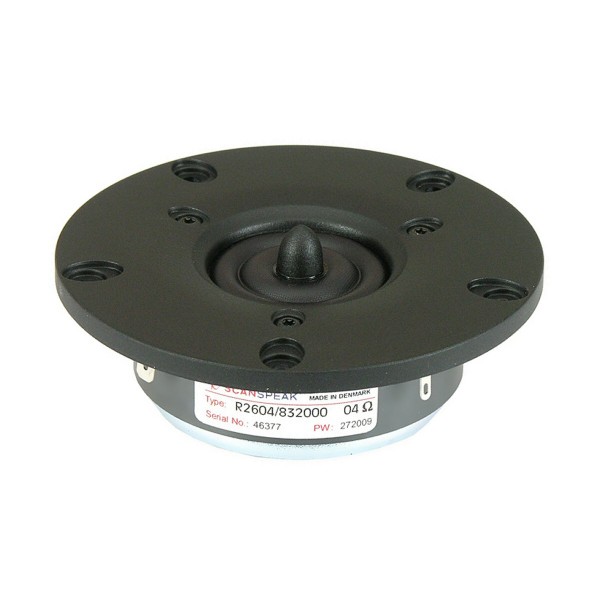

Scan-Speak Discovery R2604/8320.00
1'' Discovery Ring Dome Tweeter - 4 ohm
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 7258320
- Dual Ring Radiator diaphragm (Patent)
- Wave-guide center plug (Patent)
- Extended Frequency To Above 40KHz
- Low Resonance Frequency - 550Hz
- Low Distortion
- Silk Fabric Diaphragm
- Rear Chamber
- copper-clad aluwire
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Our newest product line, which consists of a wide range of woofers, midrange, and tweeters, offers all the high-quality sound and build we're known for, but does so at a new price point. It's mission? To challenge new market segments and to make them discover what we're all about: the best of the best within transducers.
De nieuwe Discovery serie van Scan Speak kun je het beste omschrijven als "value for money" Deze volledig nieuwe lijn wordt uiteraard gemaakt met de techniek zoals u die van Scan-Speak gewend bent. State-of-the-art luidsprekers maar dan voor een redelijke prijs. Het programma word uitgebreid met een volledige reeks tweeters middentoners en woofers
Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Specs
Electrical Data
| Nominal Impedance | Zn 4 Ohm |
| Minimum Impedance | Zmin - Ohm |
| Maximum Impedance | Zo 13 Ohm |
| DC Resistance | Re 2.9 Ohm |
| Voice Coil Inductance | Le - mH |
TS Parameters
| Resonance Frequency | Fs 550 Hz |
| Mechanical Q factor | Qms |
| Electrical Q factor | Qes |
| Total Q factor | Qts |
| Force Factor | Bl Tm |
| Mechanical Resistance | Rms Kg/s |
| Moving Mass | Mms 0.30 g |
| Suspension Compliance | Cms - mm/N |
| Effective cone diameter | D - cm |
| Effective Piston Area | Sd 5,40 cm^2 |
| Equivalent Volume | Vas - ltrs |
| Sensitivity | 2.83V/m 90.84 dB |
Power Handling
| 100h RMS noise test (IEC) | - Watt |
| Long-term Max Power (IEC18.3) | - Watt |
| Max Linear SPL (RMS) @ power | dB/W |
| Short-term Max Power (IEC18.2) | W |
Voice Coil and Magnet Parameters
| Voice Coil Diameter | 25 mm |
| Voice Coil Height | 2.2 mm |
| Voice Coil Layers | 2 |
| Height of the Gap | 2,5 mm |
| Linear Excursion +/- | 0,2 mm |
| Flux density of gap | mWb |
| Total useful Flux | mWb |
| Diameter of Magnet | 72 mm |
| Height of Magnet | 15 mm |
| Weight of Magnet | - Kg |
| Unit net weight | 0,5 Kg |

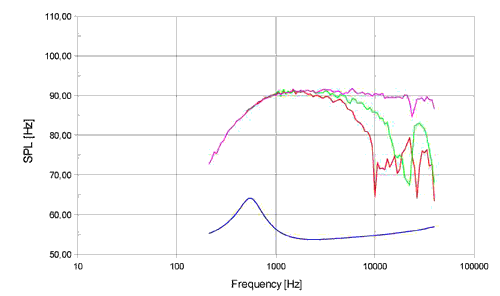

Frequency

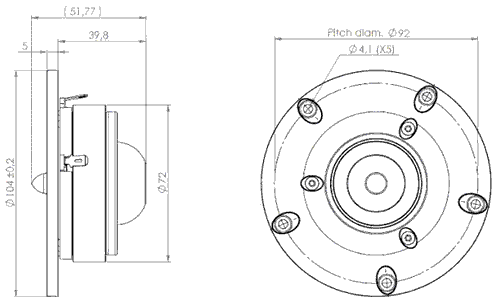

Mechanical Dimensions
Drawing Dimensions
| Outside Diameter | OD 104 mm |
| Magnet Diameter | MD 72 mm |
| Interior Depth | ID 39,8 mm |
| Hole Diameter | HD 4,1 mm |
| Screw Circle Diameter | SD 92 mm |
.
