Dayton PT2C-8

• PT2-C
• Aluminium Bandtweeter
• Uitstekende impulsrespons.
• Kapton film membraan
• Afmetingen 168 x 88 mm (HxB)
• Frequentiebereik 2500-26000 Hz
• Aanbevolen cut-off frequency, 3 kHz of hoger. Bij gebruik van een 18 dB/Oktaaf filter is ook 2,5 KHz toegestaan

Many audiophiles praise the ribbon tweeter for their excellent clarity, transparency and imaging. The key to its' performance is the almost weightless ribbon element. It consists of a Kapton film membrane with a pattern of aluminum conductors, that is placed precisely between two rows of neodymium magnets. The result is an immediate and precise response to any transients found in the original signal and the ability to deliver musical detail. The Pt2 features a large membrane and radiating area, providing higher power handling and a substantially lower cut off frequency. The membrane is thermally attached to a cast aluminum plate providing cooling and dramatically increasing dynamic range. The flared waveguide provides wide horizontal dispersion producing an excellent off axis response. At the same time, limiting vertical dispersion, which reduces disturbing floor and ceiling reflections. Perfect for "Line Array" applications.

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

Specs

Electrical Data

TS Parameters

Frequency

Mechanical Dimensions

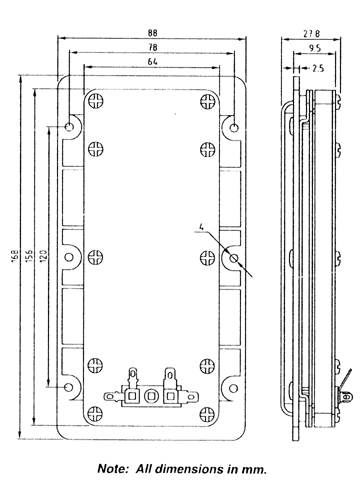

Drawing Dimensions
