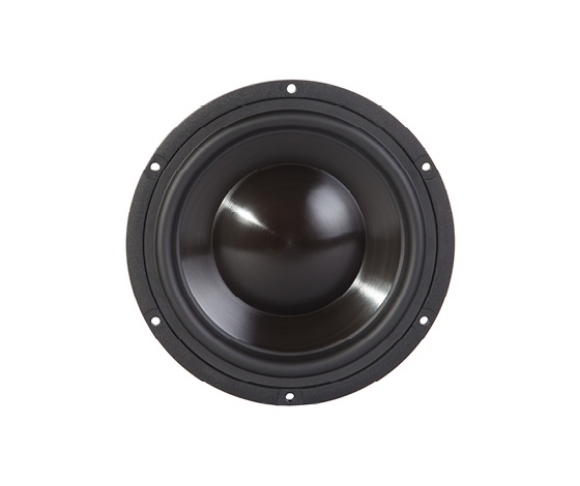

Morel TiW-638Nd

Titanium range 6" Woofer with 3" voicecoil, 8Ω. Hybrid magnet.
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 754074
Leveringsdatum: 1 - 2 werkdagen
Fabrikant: Morel
€197,50 incl. BTW
Exclusief verzenden

The Morel TiW 638Nd Woofer is a highly advanced bass-midrange drive unit featuring many class leading innovations such as the Uniflow™ Aluminium diecast chassis (designed for maximum undisturbed airflow with minimal rear reflection) and the unique Hybrid™ Neodymium / Ferrite mixed magnet assembly. In common with all Morel drive units, the motor system is superbly engineered featuring a Titanium voice coil bobbin and a large 3" voice coil wound with Hexatech™ Aluminum wire. Hexatech wire has an hexagonal cross section thereby eliminating the air gaps usually found in voice coils.

The frequency response is very well controlled to 4Khz with good off- axis characteristics. Power rating is 150w nominal and can withstand short term peaks of 1000 watts. A full datasheet can be downloaded from the bottom of this page.

Also available in 4Ω - TiW634Nd.

FEATURES

  • 3" Large Hexatech™ Aluminum voice coil
  • High Xmax, Low Qts, Low Fs, High QMS
  • Uniflow™ Aluminum diecast chassis
  • Injection damped composite polymer cone
  • Hybrid™ Neodymium/Ferrite magnet system
  • High power handling

SPECS

Resonant frequency (fs)43 HzNominal impedance (Zn)8 Ω
Mechanical  Q factor (Qms)4.7DC resistance (Re)5.4 Ω
Electrical Q factor (Qes)0.44RMS power handling150W
Total Q factor (Qts)0.40Sensitivity (2.83V/1m)87 dB
Equivalent volume (Vas)15.5 LChassis diameter160 mm



Als u liever de complete gegevens, incluisief grafieken, wilt hebben, dan kunt u de datasheet downloaden voor offline gebruik. Klik op het PDF logo

Product Informatie PDF

The Morel TiW 638Nd Woofer is a highly advanced bass-midrange drive unit featuring many class leading innovations such as the Uniflow™ Aluminium diecast chassis (designed for maximum undisturbed airflow with minimal rear reflection) and the unique Hybrid™ Neodymium / Ferrite mixed magnet assembly. In common with all Morel drive units, the motor system is superbly engineered featuring a Titanium voice coil bobbin and a large 3" voice coil wound with Hexatech™ Aluminum wire. Hexatech wire has an hexagonal cross section thereby eliminating the air gaps usually found in voice coils.

The frequency response is very well controlled to 4Khz with good off- axis characteristics. Power rating is 150w nominal and can withstand short term peaks of 1000 watts. A full datasheet can be downloaded from the bottom of this page.

Also available in 4Ω - TiW634Nd.

FEATURES

  • 3" Large Hexatech™ Aluminum voice coil
  • High Xmax, Low Qts, Low Fs, High QMS
  • Uniflow™ Aluminum diecast chassis
  • Injection damped composite polymer cone
  • Hybrid™ Neodymium/Ferrite magnet system
  • High power handling

SPECS

Resonant frequency (fs)43 HzNominal impedance (Zn)8 Ω
Mechanical  Q factor (Qms)4.7DC resistance (Re)5.4 Ω
Electrical Q factor (Qes)0.44RMS power handling150W
Total Q factor (Qts)0.40Sensitivity (2.83V/1m)87 dB
Equivalent volume (Vas)15.5 LChassis diameter160 mm



Als u liever de complete gegevens, incluisief grafieken, wilt hebben, dan kunt u de datasheet downloaden voor offline gebruik. Klik op het PDF logo

Product Informatie PDF
