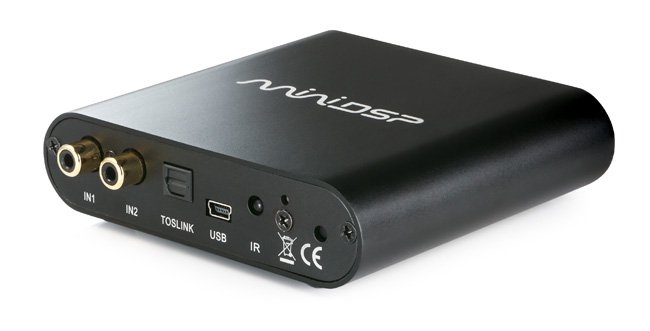

MiniDSP in a BOX 2 x in 4 x uit HD
MiniDSP 2x4 HD, a USB DAC+DSP in a low cost package powered by a powerful Sharc 400MHz floating point DSP
Beschikbaarheid:: 1 op voorraad
Artikelnummer voorraad referentie: 1066411
De MiniDSP 2 x 4 is een flexibel en gebruikersvriendelijk produkt. De software is ook voor leken goed te begrijpen. De Harware en Software zijn onafhankelijk van elkaar. Zo kun je een stereo filter maken voor 2 luidsprekers maar je kunt er ook voor kiezen om een 4-weg systeem te bouwen.
Ook geschikt om een subwoofer te filteren of om vervelende ruimteresonanties uit het te filteren. Kortom de toepasssingen zijn ruim en veelzijdig. Daarnaast is de prijs/kwaliteit-verhouding dik voor elkaar. Wil je er meer over weten dan kun je uitgebreide (engelstalige) informatie vinden op de site van MiniDSP www.minidsp.com.
Als je dit produkt via onze webshop aanschaft dan krijg je daarbij een kortingscode. Daarmee kun je op de site van www.mini.dsp.com de gekozen software gratis downloaden. Normaal kost dit $ 12,50 Je moet dan wel even een gebruikers-account aanmaken.
Introducing the long-awaited “reboot” of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!
The upgraded on-board 400 MHz Analog Devices SHARC processor also ena-bles substantial processing upgrades previously available only on more ex-pensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software.
I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.
Technical Specifications
- ADSP21489 400MHz Sharc DSP floating point engine
- XMOS Xcore200 for USB control and bidirectional audio streaming
- 24 bit ADC/DAC resolution
- Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
- Toslink digital input
- Unbalanced outputs: Max 2Vrms
- USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
- 4 preset configuration, recallable via IR, Software
- Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
- Device does not required a PC once configured
- External single 12V supply
Product Downloads
Software plug-in to be purchased separately
What's in the box?
- 1 x MiniDSP 2x4 HD, board assembled and ready to use
- 1 x 12V power supply with UK/EU/US/AU plugs
- 1 x shielded USB cable
Optional Accessories
Comparing features
| miniDSP 2x4 | miniDSP 2x4 HD |
|---|
28/56bit Fixed point DSP Engine
|
ADSP12489 400MHz Sharc floating point DSP
|
24 bit ADC/DAC resolution
|
24 bit ADC/DAC resolution
|
Unbalanced analog audio inputs switchable with a jumper between 0.9Vrms and 2Vrms
|
Unbalanced analog audio inputs switchable with a jumper between 4Vrms and 2Vrms
|
Digital I/O: I2S in/out
|
Digital I/O: USB audio I/O, Toslink input (44.1~192kHz), I2S I/O (not enabled yet)
|
Unbalanced analog audio outputs: Max 0.9Vrms
|
Unbalanced analog audio outputs: Max 2Vrms
|
Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
|
Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
|
N/A
|
Asynchronous USB Audio Class 2 Bidirectional streaming with ASIO drivers under Windows, driverless under MAC OSx
|
Device does not required a PC once configured
|
Device does not required a PC once configured
|
Software: miniDSP 2x4 plug-ins
|
Software: miniDSP 2x4 HD1 plug-in
|
Control: Volume control by potentiometer on 3pin header
|
IR remote + multicolor LED for preset indication
|
USB self powered device and wide range of DC power options (4.5 to 24VDC)
|
External single 12V supply (UK/EU/US/AU adaptors provided) |
.
