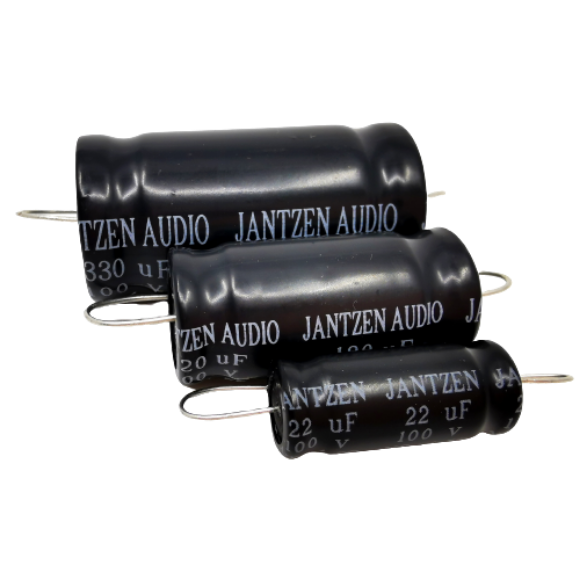

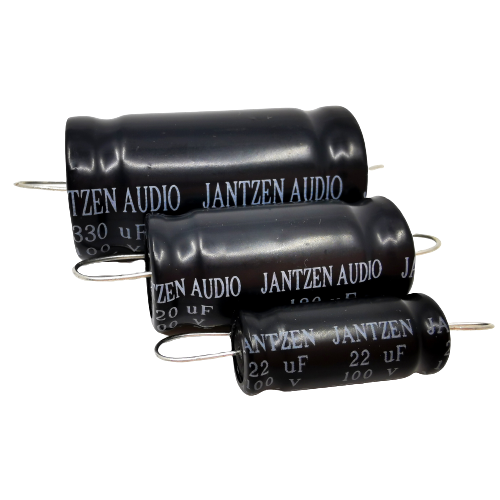

Jantzen EleCap 470,0 µF 5% 100VDC dia-22/45 mm

470,0 µF 5% 100VDC dia-22/45 mm
Fabrikant: Jantzen Audio
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 001-6192
Leveringsdatum: 1 werkdag
€10,37 incl. BTW
Exclusief verzenden
Verzenden naar
*
*
Verzendmethode
Naam
Geschatte levering
Prijs
Geen verzendopties

The Jantzen eleCap 5%, is a standard-type aluminum electrolytic capacitor, using etched or “raw” foil. With a low tolerance of only +/- 5% on capacitance, it is a more precise capacitor than most other standard-type electrolytic capacitors that usually have a tolerance of +/-10% on capacitance. Being both price friendly and versatile, this capacitor is both a sensible choice for bass section application, but also when there is limited space on other sections of the crossover.

  • 470.0 µF
  • Capacitor foil: Aluminum electrolytic / metal oxide layer
  • Voltage rating: 100 VDC / 35 VAC
  • Capacitance tolerance: +/- 5% (on nominal value)
  • Capacitance change rate: Less than +/- 20%
  • Temperature range: - 40C to + 85C
  • Leakage current: 33μA @ 10μF
  • Signal direction: Non (non-polarised capacitor)
  • Afmetingen Diameter x Lengte Ø 22 x 45 mm.

The Jantzen eleCap 5%, is a standard-type aluminum electrolytic capacitor, using etched or “raw” foil. With a low tolerance of only +/- 5% on capacitance, it is a more precise capacitor than most other standard-type electrolytic capacitors that usually have a tolerance of +/-10% on capacitance. Being both price friendly and versatile, this capacitor is both a sensible choice for bass section application, but also when there is limited space on other sections of the crossover.

  • 470.0 µF
  • Capacitor foil: Aluminum electrolytic / metal oxide layer
  • Voltage rating: 100 VDC / 35 VAC
  • Capacitance tolerance: +/- 5% (on nominal value)
  • Capacitance change rate: Less than +/- 20%
  • Temperature range: - 40C to + 85C
  • Leakage current: 33μA @ 10μF
  • Signal direction: Non (non-polarised capacitor)
  • Afmetingen Diameter x Lengte Ø 22 x 45 mm.
