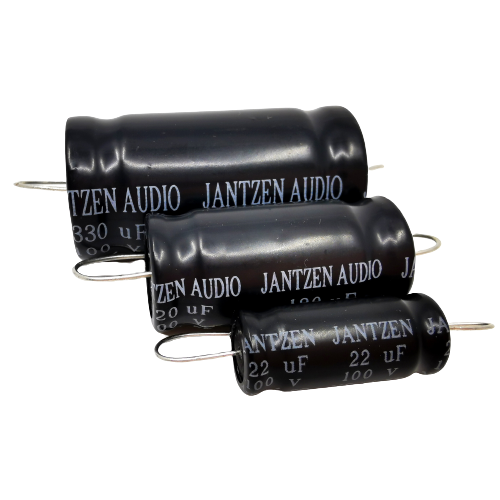

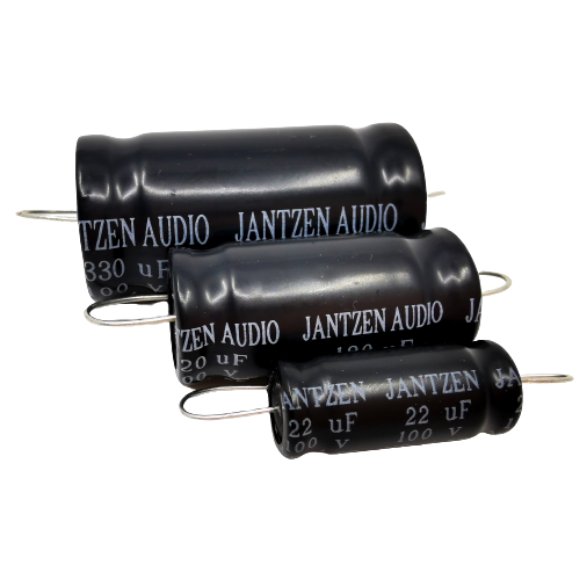

Jantzen EleCap 15,0 µF 5% 100VDC dia-10/19 mm

The Jantzen eleCap 5%, is a standard-type aluminum electrolytic capacitor, using etched or “raw” foil. With a low tolerance of only +/- 5% on capacitance, it is a more precise capacitor than most other standard-type electrolytic capacitors that usually have a tolerance of +/-10% on capacitance. Being both price friendly and versatile, this capacitor is both a sensible choice for bass section application, but also when there is limited space on other sections of the crossover.

• 15.0 µF
• Capacitor foil: Aluminum electrolytic / metal oxide layer
• Voltage rating: 100 VDC / 35 VAC
• Capacitance tolerance: +/- 5% (on nominal value)
• Capacitance change rate: Less than +/- 20%
• Temperature range: - 40C to + 85C
• Leakage current: 33μA @ 10μF
• Signal direction: Non (non-polarised capacitor)
• Afmetingen Diameter x Lengte Ø 10 x 19 mm.
