The High Definition Sound (HDS) NOMEX Series offers high-quality solutions for both multi-way speaker systems and vented box applications. Featuring "shorting rings" for low distortion and coils offering perfect linear compatibility with NOMEX cones, these audio transducers are characterized by their very open, very rich sound character.

See Application Notes

FEATURES

• Cast Aluminum Frame
• Vented Cone Neck
• Polypropylene cone
• Ferrite Magnet
• Large Excursion

SPECS

• Transducer Size 165 mm
• Impedance 8 Ω
• Resonance Frequency 61 Hz
• Sensitivity @ 1W/1m 87.7 dB
• Rated Noise Power 75 W
• Frequency Range 100 - 2500 Hz
• Net Weight 1.58 kg

Als u het complete datablad wilt inzien, download dan onze PDF

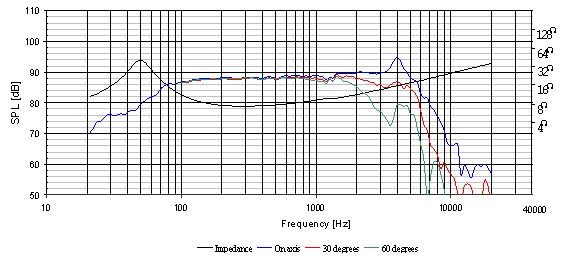

Frequency

Mechanical Dimensions
