Seas H1602-04/06 L12RE/XFC

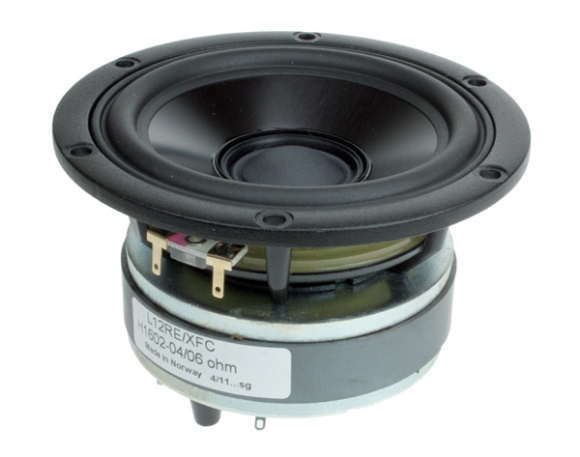

The L12RE/XFC is a coaxial loudspeaker providing high quality sound in a very compact format
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 1381721
Fabrikant: Seas
€165,25 incl. BTW
Exclusief verzenden

The L12RE/XFC is a coaxial loudspeaker providing high quality sound in a very compact format.

The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency, and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.

The cone of the woofer acts as a moderate horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn. The stiff, yet light aluminum cone acts as a piston throughout the recommended frequency range.




Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF

Een ontwerpsuggestie met filter klik hier

Specs

Electrical Data



 WooferTweeter
  • Nominal Impedance
4 Ohm6 Ohm
  • Voice Coil Resistance
Re=3,1 OhmRe=4.8 ohm
  • Voice Coil Inductance
Le=0,48 mHLe=0,05 mH
  • Recomm. Freq. Range
60-2200 Hz2000-25000 Hz

TS Parameters

  • Free Air Resonance
Fs = 55 HzFs = 1200 Hz
  • Force Factor
BL 5,5 N/ABL 2,3 N/A
  • Moving Mass
Mms=9,2 gMms=0,3 g
  • Effective Piston Area
Sd=47 cm^2Sd= 7 cm^2
  • Vas
3 Liter
  • Qms
2,99
  • Qes
0,33
  • Qts
0,30

Power Handling



 WooferTweeter
  • Long-term Power handling
80 Watt90 Watt
  • Short-term Power handling
250 Watt220 Watt

Voice Coil and Magnet Parameters

 WooferTweeter
  • Voice Coil Diameter
39 mm26 mm
  • Voice Coil Height
12 mm1,5 mm
  • Height of the Gap
6 mm2 mm
  • Linear coil Travel (p-p)
6 mm0,5 mm
  • Magnetic Gap Flux Density
0,85 T1.2 T
  • Weight of Magnet
0,42 kg
  • Total Weight
1,20 kg

Misc

  • Recommended Frequency Range
60-22002000 -25.000 Hz

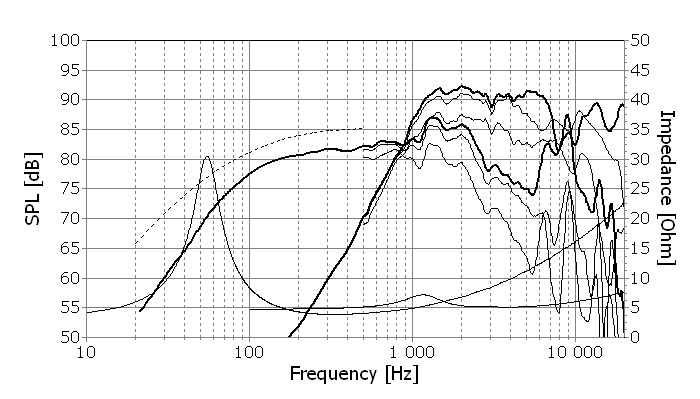

Frequency
Frequency

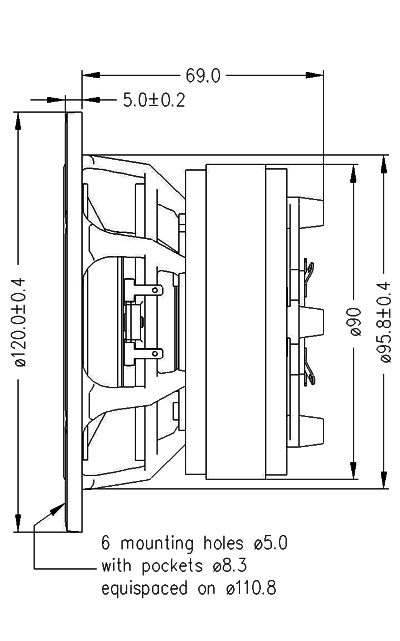

Mechanical Dimensions

Mechanical Dimensions

The L12RE/XFC is a coaxial loudspeaker providing high quality sound in a very compact format.

The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency, and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.

The cone of the woofer acts as a moderate horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn. The stiff, yet light aluminum cone acts as a piston throughout the recommended frequency range.




Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF

Een ontwerpsuggestie met filter klik hier

Specs

Electrical Data



 WooferTweeter
  • Nominal Impedance
4 Ohm6 Ohm
  • Voice Coil Resistance
Re=3,1 OhmRe=4.8 ohm
  • Voice Coil Inductance
Le=0,48 mHLe=0,05 mH
  • Recomm. Freq. Range
60-2200 Hz2000-25000 Hz

TS Parameters

  • Free Air Resonance
Fs = 55 HzFs = 1200 Hz
  • Force Factor
BL 5,5 N/ABL 2,3 N/A
  • Moving Mass
Mms=9,2 gMms=0,3 g
  • Effective Piston Area
Sd=47 cm^2Sd= 7 cm^2
  • Vas
3 Liter
  • Qms
2,99
  • Qes
0,33
  • Qts
0,30

Power Handling



 WooferTweeter
  • Long-term Power handling
80 Watt90 Watt
  • Short-term Power handling
250 Watt220 Watt

Voice Coil and Magnet Parameters

 WooferTweeter
  • Voice Coil Diameter
39 mm26 mm
  • Voice Coil Height
12 mm1,5 mm
  • Height of the Gap
6 mm2 mm
  • Linear coil Travel (p-p)
6 mm0,5 mm
  • Magnetic Gap Flux Density
0,85 T1.2 T
  • Weight of Magnet
0,42 kg
  • Total Weight
1,20 kg

Misc

  • Recommended Frequency Range
60-22002000 -25.000 Hz



Frequency
Frequency



Mechanical Dimensions

Mechanical Dimensions
