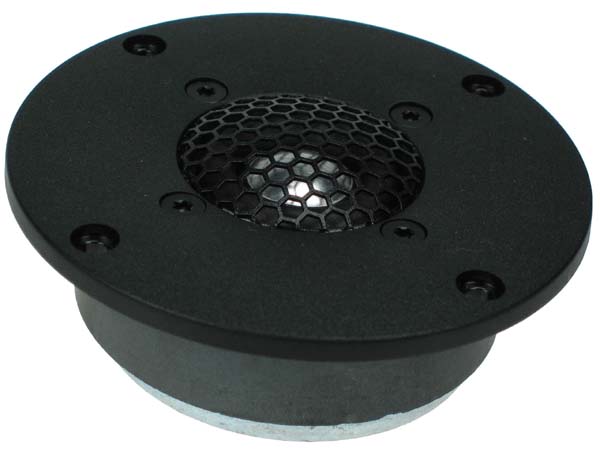

Seas H1283-06 22TAF/G

22TAF/G is a High Definition metal dome tweeter with wide, coated fabric surround
and combine the high frequency behaviour of a 3/4 dome with the low frequency
characteristics of a 1'' dome.

Aluminium/magnesium dome for low mass and high rigidity and stability. Protected
by an acoustically open Hexagrid.

Precoated Sonomex surround gives low resonance frequency, high consistency and
excellent stability against variations in air humidity.

Voice coil windings immersed in magnetic fluid increase short term power handling
capacity and reduce the compression at high power levels.

The chassis is moulded from a stiff and stable glass fibre reinforced polymer
material, and its front design offers optimum radiation conditions.

Large ferrite magnet gives high efficiency.

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

Specs

Electrical Data

TS Parameters

Power Handling

Voice Coil and Magnet Parameters

Misc

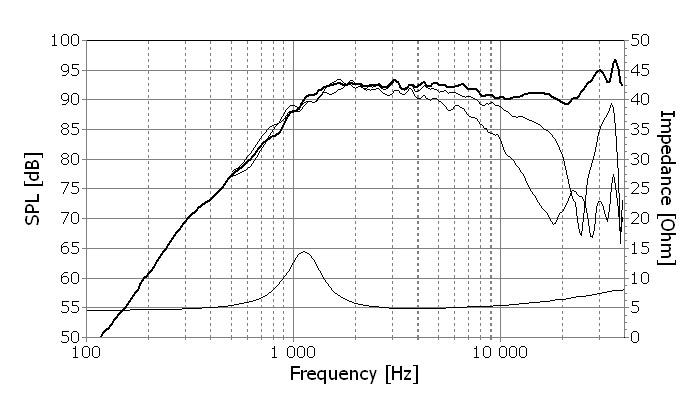

Frequency

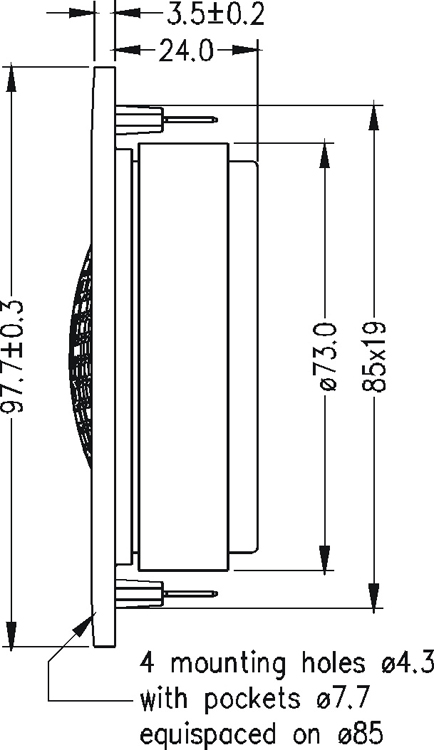

Mechanical Dimensions
