FW 168K

6½ inch midwoofer featuring a hardened aluminium cone,
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 1420110
Leveringsdatum: 1 - 2 werkdagen
Fabrikant: Fountek
€98,07 incl. BTW
Exclusief verzenden

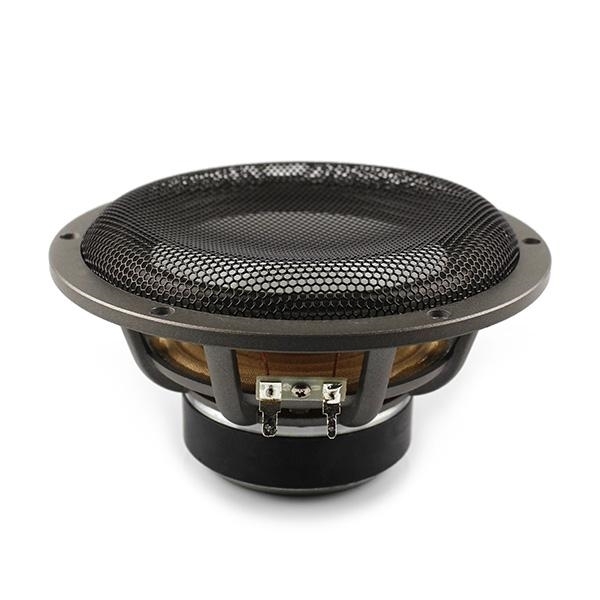

The Fountek FW168K is a 182mm / 6½ inch midwoofer featuring a hardened aluminium cone, a strong diecast chassis and an integral protection grille. This drive unit has a highly dynamic sound with an excellent transient response and low distortion.

FEATURES

  • Aluminium cone - excellent transients
  • Non resonant diecast chassis
  • 36 mm copper voicecoil
  • High compliance suspension
  • Aluminium voice coil former
  • Smooth frequency response
  • Aluminium central phase plug
  • Low distortion output
  • Cone protection grille

SPECS

Resonant frequency (fs)48.6 HzNominal impedance (Zn)8 Ω
Mechanical  Q factor (Qms)2.31DC resistance (Re)6.8 Ω
Electrical Q factor (Qes)0.52RMS power handling50W
Total Q factor (Qts)0.42Sensitivity (2.83V/1m)87.1dB
Equivalent volume (Vas)15.1 LChassis diameter182 mm

The Fountek FW168K is a 182mm / 6½ inch midwoofer featuring a hardened aluminium cone, a strong diecast chassis and an integral protection grille. This drive unit has a highly dynamic sound with an excellent transient response and low distortion.

FEATURES

  • Aluminium cone - excellent transients
  • Non resonant diecast chassis
  • 36 mm copper voicecoil
  • High compliance suspension
  • Aluminium voice coil former
  • Smooth frequency response
  • Aluminium central phase plug
  • Low distortion output
  • Cone protection grille

SPECS

Resonant frequency (fs)48.6 HzNominal impedance (Zn)8 Ω
Mechanical  Q factor (Qms)2.31DC resistance (Re)6.8 Ω
Electrical Q factor (Qes)0.52RMS power handling50W
Total Q factor (Qts)0.42Sensitivity (2.83V/1m)87.1dB
Equivalent volume (Vas)15.1 LChassis diameter182 mm
