Seas Excel E0043-06S M15CH002

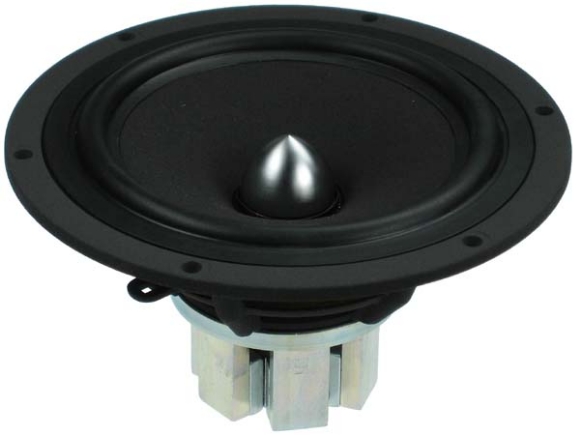

The M15CH002 is a 15cm (5'') cone midrange driver capable of a most neutral, transparent
sound reproduction.
The low distortion and noise generated by this driver set a new standard for
midrange units.

A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion resulting in low coloration in the critical midband.
Patented HEXADYM magnet system of acoustically transparent design to avoid cavity resonances and air flow noise. The magnet system based on 6 small, radially magnetized neodymium blocks is compact in order to reduce the reflexion of sound energy to a minimum.

Heavy copper rings mounted above and below the T-shaped pole piece to reduce non linear and modulation distortion and to increase overload margin.
A chrome plated brass phase plug enhance the performance of the copper rings and improve heat conduction away from the pole piece.

An extremely stiff and stable injection moulded metal basket to keep the critical components in
perfect alignment. Large windows in the basket both above and below the spider to reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

Specs

Electrical Data

TS Parameters

Power Handling

Voice Coil and Magnet Parameters

Misc

Frequency

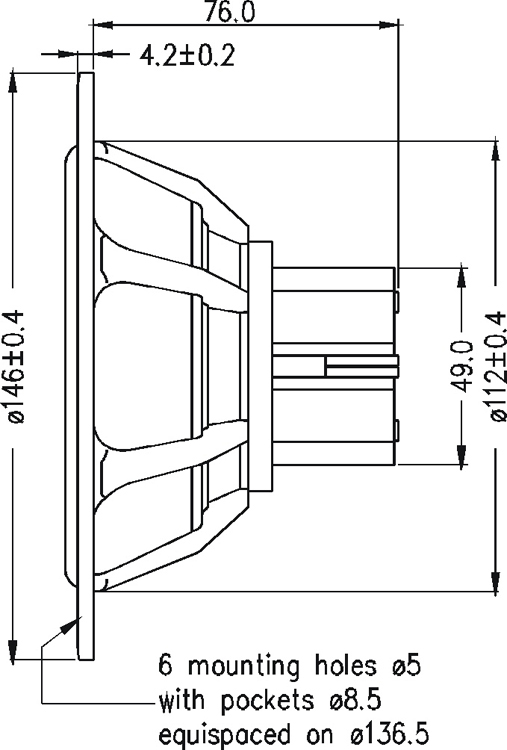

Mechanical Dimensions
