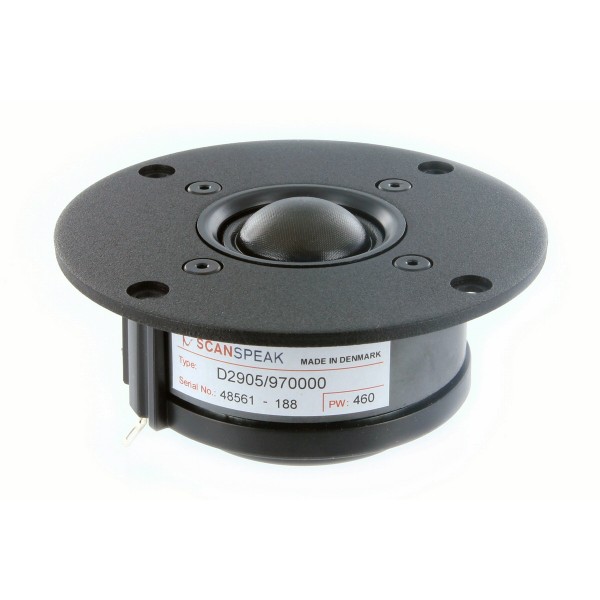

Scan Speak Classic D2905/9700.00

1'' Classic Dome Tweeter - SD-2, N.R.C. - 6 ohm
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 7309700
Fabrikant: Scan Speak Classic
€136,32 incl. BTW
Exclusief verzenden

The Classic line consists of all the highly regarded transducers that have been appraised and loved by so many customers over the years. The goal has been to assemble all the diamonds, developed over the years, speakers that fully live up to the heritage of the brand.

Driver Highlights: 1" soft dome, SD-2 motor, low compression design, non resonant chamber

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF


Specs

Electrical Data



  • Nominal Impedance
Zn 6 ohm
  • DC Resistance
Re 4.7 ohm
  • Voice Coil Inductance
0.01 mH

TS Parameters

Resonance FrequencyFs 500 Hz
  • Force Factor
Bl 3.5 Tm
  • Moving Mass
Mms 0.45 g
  • Effective Piston Area
Sd 8.5 cm^2
  • Sensitivity
2.83V/1m 89.5 dB



Power Handling



  • 100h RMS noise test
IEC 225 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
28 mm
  • Linear Excursion
0.4 mm
  • Max mech. excursion
1.5 mm

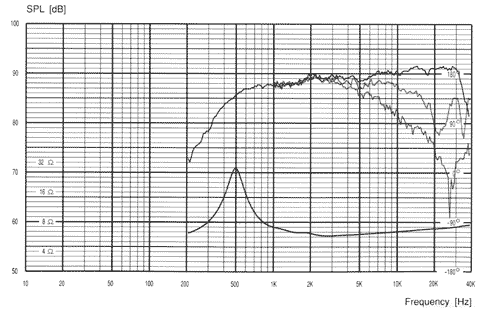

Frequency
Frequency

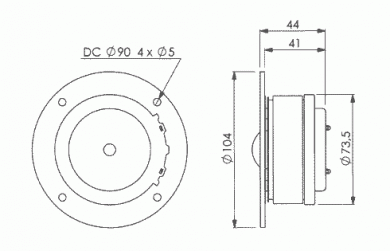

Mechanical Dimensions

Mechanical Dimensions



Drawing Dimensions

  • Outside Diameter
OD 104 mm
  • Magnet Diameter
MD 73.5 mm
  • Interior Depth
ID 41 mm
  • Hole Diameter
HD 5 mm
  • Screw Circle Diameter
SD 90 mm

The Classic line consists of all the highly regarded transducers that have been appraised and loved by so many customers over the years. The goal has been to assemble all the diamonds, developed over the years, speakers that fully live up to the heritage of the brand.

Driver Highlights: 1" soft dome, SD-2 motor, low compression design, non resonant chamber

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF


Specs

Electrical Data



  • Nominal Impedance
Zn 6 ohm
  • DC Resistance
Re 4.7 ohm
  • Voice Coil Inductance
0.01 mH

TS Parameters

Resonance FrequencyFs 500 Hz
  • Force Factor
Bl 3.5 Tm
  • Moving Mass
Mms 0.45 g
  • Effective Piston Area
Sd 8.5 cm^2
  • Sensitivity
2.83V/1m 89.5 dB



Power Handling



  • 100h RMS noise test
IEC 225 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
28 mm
  • Linear Excursion
0.4 mm
  • Max mech. excursion
1.5 mm

Frequency
Frequency



Mechanical Dimensions

Mechanical Dimensions



Drawing Dimensions

  • Outside Diameter
OD 104 mm
  • Magnet Diameter
MD 73.5 mm
  • Interior Depth
ID 41 mm
  • Hole Diameter
HD 5 mm
  • Screw Circle Diameter
SD 90 mm
