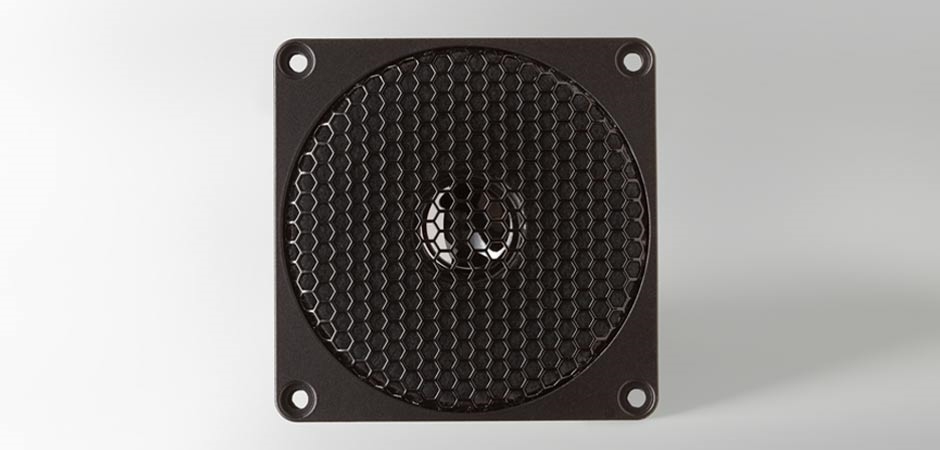

Accuton BD20-6-031

The BD20–6–031 is a 0.8 inch tweeter with ultra hard diamond dom in a 82 mm frontplate. As the dome breakup frequency is around 60 kHz, no damping cutouts are required. The unsurpassed rigidity of the diamond dome leads to most accurate conversion from electrical energy to sound pressure. An FEA optimized underhung motor design with vented aluminium voice coil former and neodymium magnet guarantees low energy storage and excellent heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with excellent linearity.

We recommend the BD20-6-031 in an application above 2500 Hz.

Wordt alleen verkocht als matched pair
