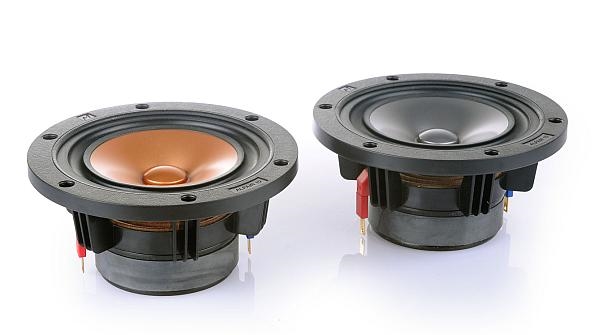

Mark Audio Alpair 10 gen2 FR Copper/Gold

This Alpair 10 is the latest model in a development line designed to extend the performance
of mid-sized Markaudio full-range emitters. Measured performance is extended. Vas
increases from 21 to 28 litres. Fo is now 36Hz, 4Hz lower than the old model. Total Q
increases to 0.33 making this new Alpair 10 usable in larger audio applications.
This driver uses an all-new Multi-form cone design and U cap with a new more efficient
profiles giving improved high range performance. Additional features include a new
advanced Nomex super-light rear suspension (spider) and a special aluminium rectangle
wire wound coil, both reduce the mass of the power-train. The Alpair 10ʻs frame has a new
mix of polymers for the frame, making it 10% stiffer than the old model. New connector sets
allow for remote soldering of cables, installation is easy.

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

1 - Cones. All-new Multiform construction (as per other Gen. 2 Alpairs). The new profile is shallow. The overall depth has been reduced by 20% while 2 additional radii are added to its profile making this cone the most complex we have produced to date.

2 - Suspensions. Lui Yi Ping has "tweaked" the front suspension to reduce load resistance over the first 4-mm of travel. The new Nomex rear suspension is a new light grade synthetic material currently only being used on this driver. Note just how thin it is by looking at the parts pic.

3 - The new coil is a Japan made rectangle wire, tight-wound onto a light alu body. The complete coil assembly weighs under 4g being produced for us by a Japanese maker.

4 - Frame and connectors are all re-designed. The frame includes a new injection moulded seal. This increases the damping factor and makes installation easier. The connectors are new and include extensions for simple cable connection.

Outcomes:
The Alp10 Gen. 2 driver is a large step forward from the old model. It pushes more air, 28 litres compared to 19.5 while total Q is up to 0.35 (old model 0.33). The Resonance frequency on the new model is 36Hz (40Hz on the old model) while SPL remains at 87dB. From the technical standpoint, this driver is delivering allot more for your bucks.

Acoustic performance is improved. Central imaging is wider, mids are clearer and highs go further. I wanted to take the 10 allot further this time around. Essentially, you`re going to get more of just about everything. More dynamics, range, depth, clarity etc; But no harshness, the Alp10 Gen. 2 remains sweet.

Levering per stuk

Kleur: goud (kleur grijs mogelijk op speciale bestelling)
