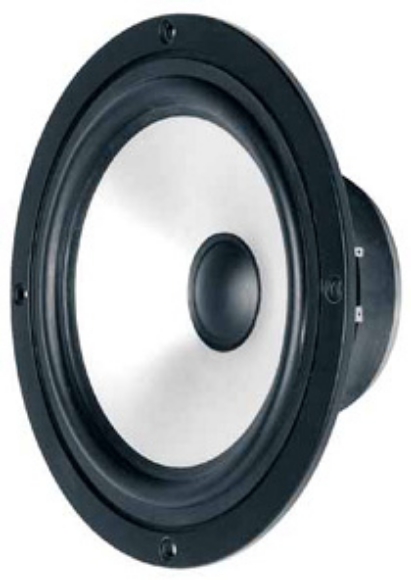

Visaton AL 170

AL 170
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 5921302
Fabrikant: Visaton
€156,23 incl. BTW
Exclusief verzenden

17 cm (6.5") High-End low midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.

Technical Data:
Rated power70 W
Maximum power100 W
Nominal impedance Z8 Ohm
Frequency responsefu–10000 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)51°/4000 Hz
Excursion limit+/-11,0 mm
Resonance frequency fs38 Hz
Magnetic induction1,1 T
Magnetic flux520 µWb
Height of front pole-plate6 mm
Voice coil diameter25 mm
Height of winding18 mm
Cutout diameter150 mm
Net weight1,2 kg
D.C. resistance Rdc5,6 Ohm
Mechanical Q factor Qms3,88
Electrical Q factor Qes0,43
Total Q factor Qts0,39
Equivalent volume Vas34 l
Effective piston area Sd133 cm²
Dynamically moved mass Mms13 g
Force factor Bxl6,9 Tm
Inductance of the voice coil L0,9 mH

Kastsuggesties

Volume/PrincipleBR-Channelfbfc/QTC
10 liter closed73 Hz / 0,68
20 liter Bass reflexBR 19.24 (length 13 cm)43 Hz-
30 liter Bass reflexBR 19.24 (lengt 11 cm)39 Hz-

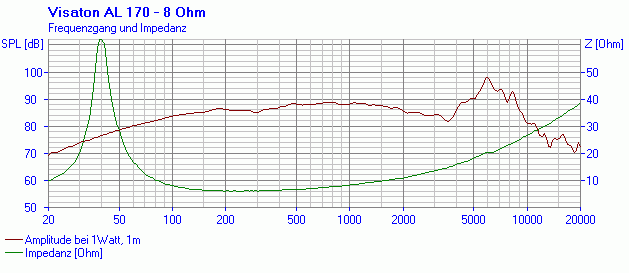

Frequentieverloop

Frequentieverloop

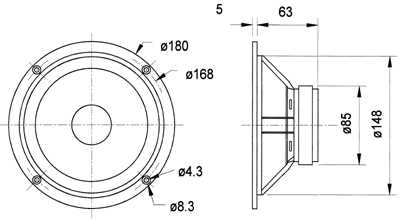

Afmetingen

W100S

17 cm (6.5") High-End low midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.

Technical Data:
Rated power70 W
Maximum power100 W
Nominal impedance Z8 Ohm
Frequency responsefu–10000 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)51°/4000 Hz
Excursion limit+/-11,0 mm
Resonance frequency fs38 Hz
Magnetic induction1,1 T
Magnetic flux520 µWb
Height of front pole-plate6 mm
Voice coil diameter25 mm
Height of winding18 mm
Cutout diameter150 mm
Net weight1,2 kg
D.C. resistance Rdc5,6 Ohm
Mechanical Q factor Qms3,88
Electrical Q factor Qes0,43
Total Q factor Qts0,39
Equivalent volume Vas34 l
Effective piston area Sd133 cm²
Dynamically moved mass Mms13 g
Force factor Bxl6,9 Tm
Inductance of the voice coil L0,9 mH

Kastsuggesties

Volume/PrincipleBR-Channelfbfc/QTC
10 liter closed73 Hz / 0,68
20 liter Bass reflexBR 19.24 (length 13 cm)43 Hz-
30 liter Bass reflexBR 19.24 (lengt 11 cm)39 Hz-

Frequentieverloop

Frequentieverloop

Afmetingen

W100S
