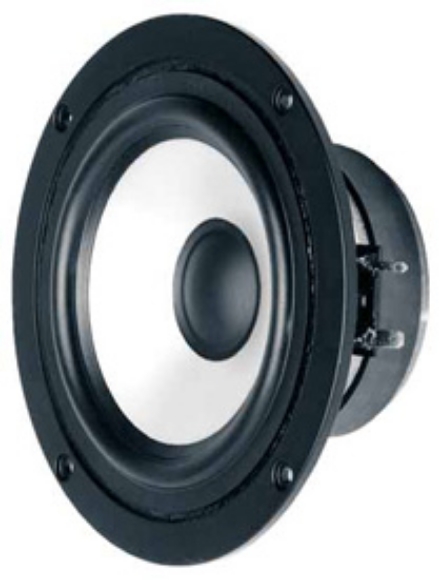

Visaton Al 130 M

Al 130 M
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 5921305
Fabrikant: Visaton
€141,15 incl. BTW
Exclusief verzenden

13 cm (5") High End midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low mechanical and electrical losses due to vented pole plate and vented damper. Capton voice-coil and impedance control ring. Due to the short voice-coil, the efficiency, compared to the AL 130 8 OHM, has been increased by 2-3 dB above 500 Hz. Suitable as midrange driver in 3-way High End applications for a frequency range up to 5000 Hz.



Technical Data:
Rated power60 W
Maximum power90 W
Nominal impedance Z8 Ohm
Frequency responsefu–8000 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)94°/4000 Hz
Excursion limit+/-5,5 mm
Resonance frequency fs57 Hz
Magnetic induction0,95 T
Magnetic flux450 µWb
Height of front pole-plate6 mm
Voice coil diameter25 mm
Height of winding12 mm
Cutout diameter115 mm
Net weight1 kg
D.C. resistance Rdc5,4 Ohm
Mechanical Q factor Qms4,39
Electrical Q factor Qes0,52
Total Q factor Qts0,46
Equivalent volume Vas9,1 l
Effective piston area Sd79 cm²
Dynamically moved mass Mms7,4 g
Force factor Bxl5,6 Tm
Inductance of the voice coil L0,8 mH

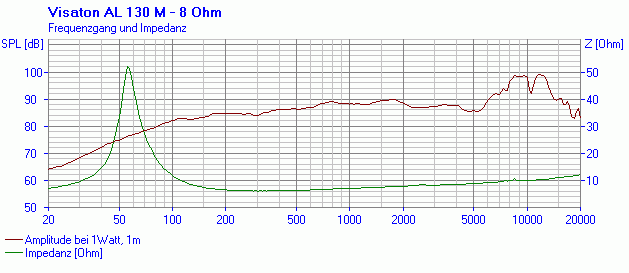

Frequentieverloop

Frequentieverloop

Afmetingen

Al130

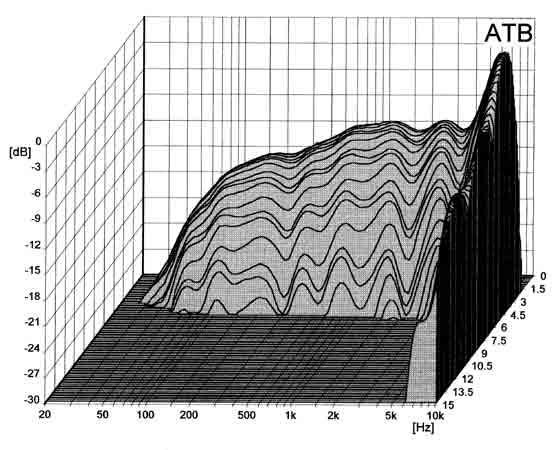

Watervaldiagram

Al130

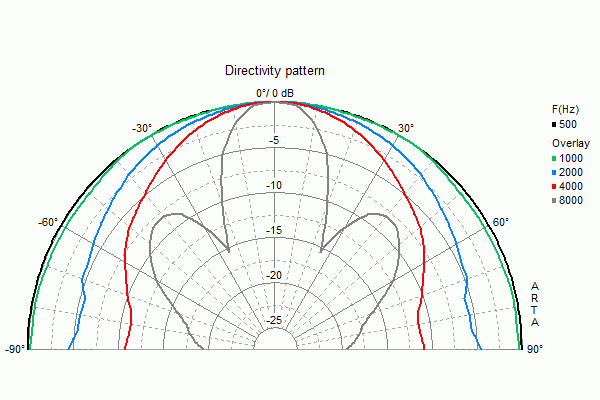

Directivity

Al130
