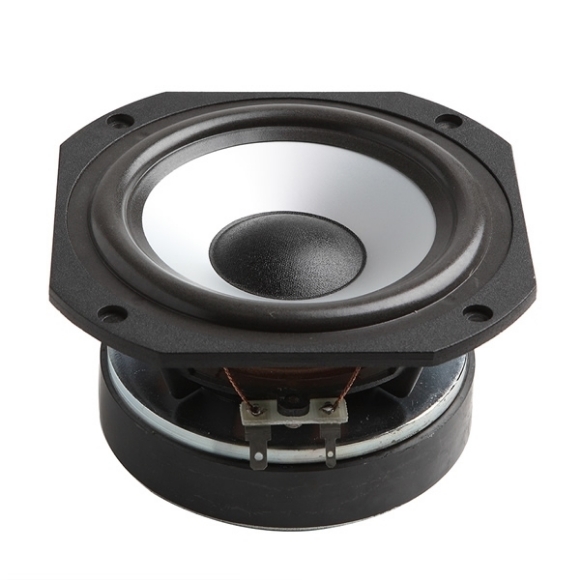

Fountek 5.0″ FM 135 DII

5.0" midrange driver niet meer leverbaar
Beschikbaarheid:: 4 op voorraad
Artikelnummer voorraad referentie: 1420071
Leveringsdatum: Direct leverbaar
Fabrikant: Fountek
€31,60 incl. BTW
Exclusief verzenden

The Fountek FM135D-II is a 5¼" / 135mm midrange driver featuring an aluminium cone, a rigid diecast basket and a high temperature copper clad aluminium voice coil wound on a 35mm kapton former.

Operates as a pure piston between 120 - 400Hz then the response gently tapers upwards to 5Khz, our recommended upper limit for this unit. As to be expected with a small metal coned drive unit, the FM135D-II has an excellent transient response. The first major cone breakup occurs at around 7Khz, this is easily avoided or notched in the crossover.

FEATURES

  • Aluminium cone - excellent transients
  • Non resonant diecast chassis
  • 35 mm CCAW voicecoil
  • High compliance rubber suspension
  • Kapton voice coil former
  • Smooth frequency response
  • Neodymium magnet system

SPECS:

Resonant frequency (fs)73 HzNominal impedance (Zn)8 Ω
Mechanical  Q factor (Qms)1.84DC resistance (Re)6 Ω
Electrical Q factor (Qes)0.69RMS power handling30 W
Total Q factor (Qts)0.28Sensitivity (2.83V/1m)89 dB
Equivalent volume (Vas)6.47 LChassis diameter150 mm

The Fountek FM135D-II is a 5¼" / 135mm midrange driver featuring an aluminium cone, a rigid diecast basket and a high temperature copper clad aluminium voice coil wound on a 35mm kapton former.

Operates as a pure piston between 120 - 400Hz then the response gently tapers upwards to 5Khz, our recommended upper limit for this unit. As to be expected with a small metal coned drive unit, the FM135D-II has an excellent transient response. The first major cone breakup occurs at around 7Khz, this is easily avoided or notched in the crossover.

FEATURES

  • Aluminium cone - excellent transients
  • Non resonant diecast chassis
  • 35 mm CCAW voicecoil
  • High compliance rubber suspension
  • Kapton voice coil former
  • Smooth frequency response
  • Neodymium magnet system

SPECS:

Resonant frequency (fs)73 HzNominal impedance (Zn)8 Ω
Mechanical  Q factor (Qms)1.84DC resistance (Re)6 Ω
Electrical Q factor (Qes)0.69RMS power handling30 W
Total Q factor (Qts)0.28Sensitivity (2.83V/1m)89 dB
Equivalent volume (Vas)6.47 LChassis diameter150 mm
