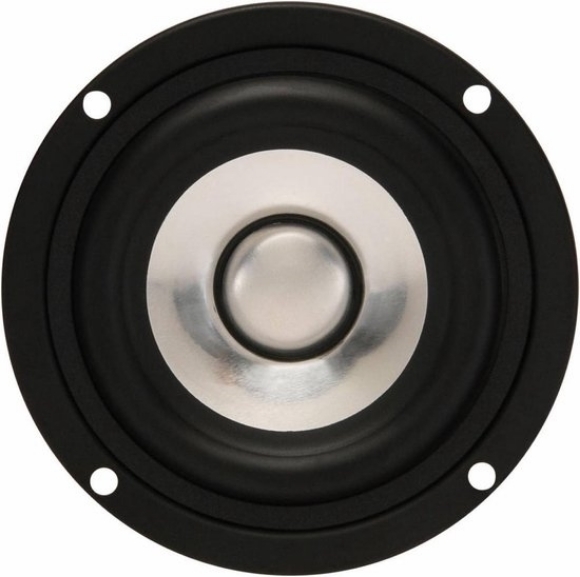

3″ FE85

3 Inch fullrange Aluminium cone
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 1420060
Leveringsdatum: 1 - 2 werkdagen
Fabrikant: Fountek
€32,24 incl. BTW
Exclusief verzenden

FEATURES

Fountek’s FE85 features an attractive lightweight aluminum cone, cosmetic stamped frame, and a high-performance ferrite motor structure. Highlights * Attractive thin-foil aluminum diaphragm * Cosmetic stamped steel frame * Economical ferrite motor structure * Ultra-fast transient response Product Details Fountek FE85 3 Full Range Speaker Fountek has applied much of what it has learned from designing industry-leading ribbon transducers in creating its line of full-range drivers. These high-performance cone drivers feature a lightweight aluminum diaphragms that shed resonance rapidly for exceptional detail and smooth frequency response. The FE85 model features a generously-proportioned ferrite motor structure and a cosmetic steel frame to complement its high-tech diaphragm, creating an affordable, high-value driver choice for compact applications such as desktop speakers, mini-satellites, or line arrays.

SPECS

SpecificationsMagnet System
Overall DimensionsD90*43.4mmMagnet system typeferrite
Net.weight0.47kgsMagnetic Gap Height3mm
Nominal Power Handling12W rmsB Flux Density1.0T
Nominal Impedance8 ohmsBL Product3.7Tm
Sensitivity 1W/1M85.7dBMax Linear Excursion1.5mm+/-
Frequency Response100-25,000HzT/S Parameter
Resonant frequency125HzCms0.82mm/N
Voice CoilSd27cm^2
Voice Coil Diameter20mmVas0.85L
Voice coil Height7mmMmd1.991gm
Voice coil formerblack aluminumMms2.073gm
Voice coil Wirecopper roundQms2.13
Number of Layers2Qes0.67
DC Resistance6.0ohmsQts0.52

Als u de uitgebreide technische gevens wilt bekijken, download dan de PDF datasheet door op het PDF logo te klikken.
Product Informatie PDF

FEATURES

Fountek’s FE85 features an attractive lightweight aluminum cone, cosmetic stamped frame, and a high-performance ferrite motor structure. Highlights * Attractive thin-foil aluminum diaphragm * Cosmetic stamped steel frame * Economical ferrite motor structure * Ultra-fast transient response Product Details Fountek FE85 3 Full Range Speaker Fountek has applied much of what it has learned from designing industry-leading ribbon transducers in creating its line of full-range drivers. These high-performance cone drivers feature a lightweight aluminum diaphragms that shed resonance rapidly for exceptional detail and smooth frequency response. The FE85 model features a generously-proportioned ferrite motor structure and a cosmetic steel frame to complement its high-tech diaphragm, creating an affordable, high-value driver choice for compact applications such as desktop speakers, mini-satellites, or line arrays.

SPECS

SpecificationsMagnet System
Overall DimensionsD90*43.4mmMagnet system typeferrite
Net.weight0.47kgsMagnetic Gap Height3mm
Nominal Power Handling12W rmsB Flux Density1.0T
Nominal Impedance8 ohmsBL Product3.7Tm
Sensitivity 1W/1M85.7dBMax Linear Excursion1.5mm+/-
Frequency Response100-25,000HzT/S Parameter
Resonant frequency125HzCms0.82mm/N
Voice CoilSd27cm^2
Voice Coil Diameter20mmVas0.85L
Voice coil Height7mmMmd1.991gm
Voice coil formerblack aluminumMms2.073gm
Voice coil Wirecopper roundQms2.13
Number of Layers2Qes0.67
DC Resistance6.0ohmsQts0.52

Als u de uitgebreide technische gevens wilt bekijken, download dan de PDF datasheet door op het PDF logo te klikken.
Product Informatie PDF
