Scan Speak Revelator 22W/4851T00

8'' Revelator Woofer - Paper Cone - 4 ohm
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 7348510
€289,21 incl. BTW
Exclusief verzenden

The Revelator series has for years been celebrated for producing the best sounding electro dynamic transducers in the world. Since ScanSpeak was founded in 1970, the audio engineers and R&D experts working on the line have been on a quest to create drivers that reveal all the sound in recordings, hiding nothing from the listener. This quest has resulted in several revolutionary inventions that remove distortion in the magnet systems and in the moving parts of the speaker. The philosophy is that the sound has to be very dynamic, giving a perfect transient response and providing tonal balance. The latest generation of the Revelator woofers incorporates a new aluminum cone design, resulting in an impressive transient response. The output is incredibly natural sounding bass that challenges the listener to tell the difference between the real thing and its reproduction.

Driver Highlights: Low loss linear suspension, SD-1 motor system, hard paper cone


Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF



Specs

Electrical Data

  • Nominal Impedance
  • Zn 4 ohm
  • DC Resistance
  • Re 3.7 ohm
  • Voice Coil Inductance
  • 0.3 mH

    TS Parameters

  • Resonance Frequency
  • Fs 20.5 Hz
  • Mechanical Q factor
  • Qms 5.2
  • Electrical Q factor
  • Qes 0.23
  • Total Q factor
  • Qts 0.22
  • Force Factor
  • Bl 8.2.Tm
  • Mechanical Resistance
  • Rms 0.8 Kg/s
  • Moving Mass
  • Mms 32.5 g
  • Effective Piston Area
  • Sd 220 cm^2
  • Equivalent Volume
  • Vas 127 ltrs
  • Sensitivity
  • 2.83V/1m 89 dB

    Power Handling

  • 100h RMS noise test
  • IEC 170 W

    Voice Coil and Magnet Parameters

  • Voice Coil Diameter
  • 50 mm
  • Linear Excursion
  • +/- 9 mm
  • Max mech. excursion
  • +/- 14 mm

    Frequency
    Frequency


    Mechanical Dimensions

    Mechanical Dimensions


    The Revelator series has for years been celebrated for producing the best sounding electro dynamic transducers in the world. Since ScanSpeak was founded in 1970, the audio engineers and R&D experts working on the line have been on a quest to create drivers that reveal all the sound in recordings, hiding nothing from the listener. This quest has resulted in several revolutionary inventions that remove distortion in the magnet systems and in the moving parts of the speaker. The philosophy is that the sound has to be very dynamic, giving a perfect transient response and providing tonal balance. The latest generation of the Revelator woofers incorporates a new aluminum cone design, resulting in an impressive transient response. The output is incredibly natural sounding bass that challenges the listener to tell the difference between the real thing and its reproduction.

    Driver Highlights: Low loss linear suspension, SD-1 motor system, hard paper cone


    Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
    Product Informatie PDF



    Specs

    Electrical Data

  • Nominal Impedance
  • Zn 4 ohm
  • DC Resistance
  • Re 3.7 ohm
  • Voice Coil Inductance
  • 0.3 mH

    TS Parameters

  • Resonance Frequency
  • Fs 20.5 Hz
  • Mechanical Q factor
  • Qms 5.2
  • Electrical Q factor
  • Qes 0.23
  • Total Q factor
  • Qts 0.22
  • Force Factor
  • Bl 8.2.Tm
  • Mechanical Resistance
  • Rms 0.8 Kg/s
  • Moving Mass
  • Mms 32.5 g
  • Effective Piston Area
  • Sd 220 cm^2
  • Equivalent Volume
  • Vas 127 ltrs
  • Sensitivity
  • 2.83V/1m 89 dB

    Power Handling

  • 100h RMS noise test
  • IEC 170 W

    Voice Coil and Magnet Parameters

  • Voice Coil Diameter
  • 50 mm
  • Linear Excursion
  • +/- 9 mm
  • Max mech. excursion
  • +/- 14 mm

    Frequency
    Frequency


    Mechanical Dimensions

    Mechanical Dimensions


    Schrijf uw eigen beoordeling
    • Product kan alleen worden beoordeeld nadat het is gekocht
    • Alleen geregistreerde gebruikers kunnen een beoordeling schrijven
    *
    *
    Slecht
    Uitstekend
    Klanten die dit kochten, kochten ook.

    Scan Speak Illuminator D3004/6600.00

    7366000
    1'' Illuminator Dome Tweeter - AirCirc Black - 4 ohm
    €173,51 incl. BTW
    Exclusief verzenden

    Audyn 0.22 µF MKP-kond. 400-V 5%

    1341255
    0.22 µF MKP-kond. 400-V 5%
    €3,51 incl. BTW
    Exclusief verzenden

    Audyn 6.80 µF MKP-kond. 400-V 5%

    1341360
    6.80 µF MKP-kond. 400-V 5%
    €8,22 incl. BTW
    Exclusief verzenden

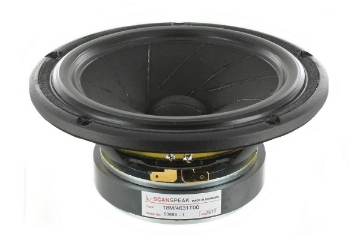

    Scan Speak Revelator 18M/4631T00
