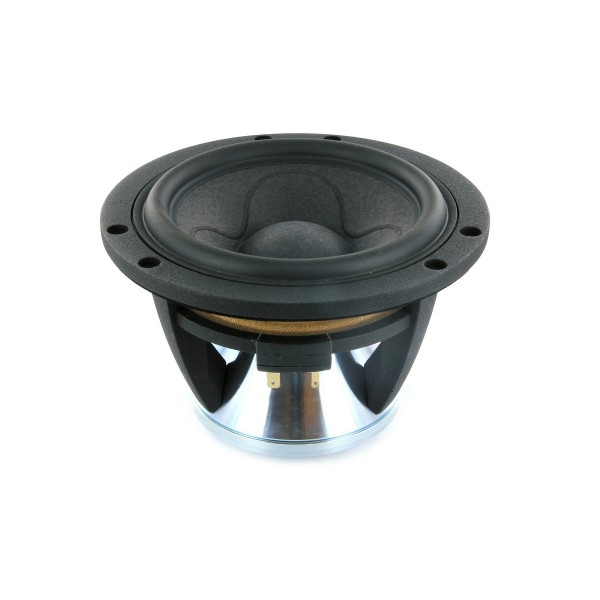

Scan Speak Illuminator 15WU/8741.T00

5.5'' Illuminator Midwoofer - Sandwich Paper Cone - 8 ohm
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 7387410
Fabrikant: Scan Speak Illuminator
€297,48 incl. BTW
Exclusief verzenden



The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very lineair excursion together with a very high force factor. The top plate is shaped to "guide" the backside airflow around the motor and with the very open cast aluminium chassis design the driver is virtually free from compression.

Driver HighLights:

  • Neo Magnet
  • Under Hung Motor System
  • Exceptional long lineair stroke

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF


Specs

Electrical Data



  • Nominal Impedance
Zn 8 Ohm
  • Minimum Impedance
Zmin 7.9 Ohm
  • Maximum Impedance
Zo 70.3 Ohm
  • DC Resistance
Re 5.9 Ohm
  • Voice Coil Inductance
Le 0.41 mH

TS Parameters

  • Resonance Frequency
Fs 35 Hz
  • Mechanical Q factor
Qms 3.37
  • Electrical Q factor
Qes 0.28
  • Total Q factor
Qts 0.26
  • Force Factor
Bl 7.5 Tm
  • Mechanical Resistance
Rms 0.8 Kg/s
  • Moving Mass
Mms 12.3 g
  • Suspension compliance
Cms 1.68 mm/N
  • Effective cone diameter

  • Effective Piston Area
Sd 92 cm^2
  • Equivalent Volume
Vas 20.1 ltrs
  • Sensitivity 2.83V/1m
83.5 dB

Power Handling

  • 100h RMS noise test (IEC)
80 W
  • Long-term Max Power (IEC 18.3)
150 W
  • Short-term Max Power (IEC 18.3)
200 W



Voice Coil and Magnet Parameters



  • Voice Coil Diameter
42 mm
  • Voice coil height
8 mm
  • Voice coil layers
4
  • Height of the gap-
20 mm
  • Linear Excursion +/-
6 mm
  • Max mech. excursion +/-
12 mm
  • Diameter of magnet
90 mm
  • Height of Magnet
4 mm
  • Weight of Magnet
0.13 Kg

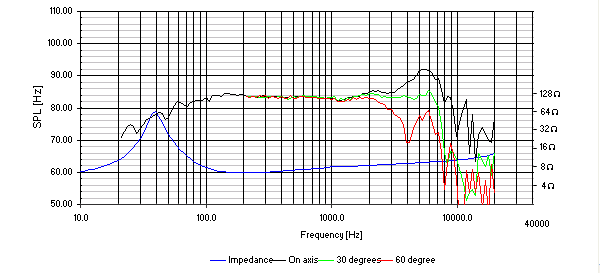

Frequency
Frequency

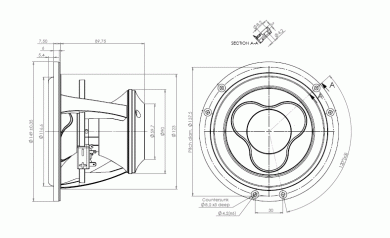

Mechanical Dimensions

Mechanical Dimensions



Drawing Dimensions

Outside DiameterOD 149 mm
Magnet DiameterMD 90 mm
Cutout DiameterCD 123 mm
Interior DepthID 91 mm
Hole DiameterHD 4,2 mm



The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very lineair excursion together with a very high force factor. The top plate is shaped to "guide" the backside airflow around the motor and with the very open cast aluminium chassis design the driver is virtually free from compression.

Driver HighLights:

  • Neo Magnet
  • Under Hung Motor System
  • Exceptional long lineair stroke

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF


Specs

Electrical Data



  • Nominal Impedance
Zn 8 Ohm
  • Minimum Impedance
Zmin 7.9 Ohm
  • Maximum Impedance
Zo 70.3 Ohm
  • DC Resistance
Re 5.9 Ohm
  • Voice Coil Inductance
Le 0.41 mH

TS Parameters

  • Resonance Frequency
Fs 35 Hz
  • Mechanical Q factor
Qms 3.37
  • Electrical Q factor
Qes 0.28
  • Total Q factor
Qts 0.26
  • Force Factor
Bl 7.5 Tm
  • Mechanical Resistance
Rms 0.8 Kg/s
  • Moving Mass
Mms 12.3 g
  • Suspension compliance
Cms 1.68 mm/N
  • Effective cone diameter

  • Effective Piston Area
Sd 92 cm^2
  • Equivalent Volume
Vas 20.1 ltrs
  • Sensitivity 2.83V/1m
83.5 dB

Power Handling

  • 100h RMS noise test (IEC)
80 W
  • Long-term Max Power (IEC 18.3)
150 W
  • Short-term Max Power (IEC 18.3)
200 W



Voice Coil and Magnet Parameters



  • Voice Coil Diameter
42 mm
  • Voice coil height
8 mm
  • Voice coil layers
4
  • Height of the gap-
20 mm
  • Linear Excursion +/-
6 mm
  • Max mech. excursion +/-
12 mm
  • Diameter of magnet
90 mm
  • Height of Magnet
4 mm
  • Weight of Magnet
0.13 Kg

Frequency
Frequency



Mechanical Dimensions

Mechanical Dimensions



Drawing Dimensions

Outside DiameterOD 149 mm
Magnet DiameterMD 90 mm
Cutout DiameterCD 123 mm
Interior DepthID 91 mm
Hole DiameterHD 4,2 mm
