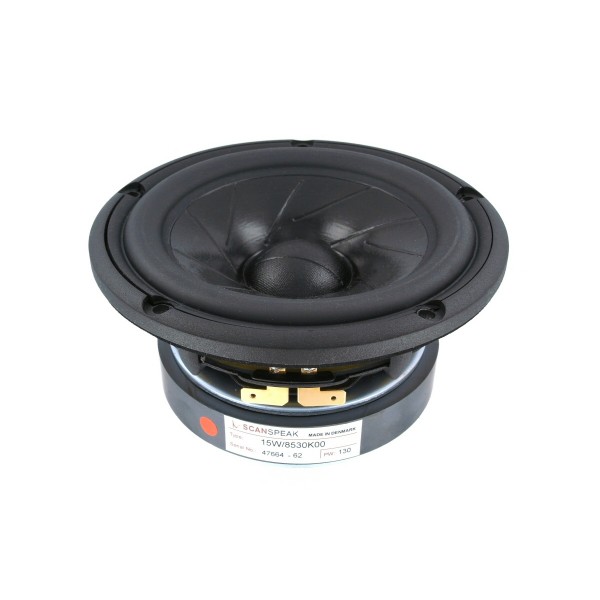

Scan Speak Revelator 15W/8530K00

5.5'' Revelator Midwoofer - Coated Sliced Paper Cone - 8 ohm
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 7308530
€165,25 incl. BTW
Exclusief verzenden

The Revelator series has for years been celebrated for producing the best sounding electro dynamic transducers in the world. Since ScanSpeak was founded in 1970, the audio engineers and R&D experts working on the line have been on a quest to create drivers that reveal all the sound in recordings, hiding nothing from the listener. This quest has resulted in several revolutionary inventions that remove distortion in the magnet systems and in the moving parts of the speaker. The philosophy is that the sound has to be very dynamic, giving a perfect transient response and providing tonal balance. One of the latest inventions realized in the Revelator midrange design is the sliced paper cone, which reduces break-up modes in the membrane dramatically. The result is an undisputed clarity in sound.

Driver Highlights: Low loss linear suspension, sliced paper cone, SD-1 motor


Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF



Specs

Electrical Data



  • Nominal Impedance
Zn 8 ohm
  • DC Resistance
Re 5.8 ohm
  • Voice Coil Inductance
0.35 mH

TS Parameters

  • Resonance Frequency
Fs 30 Hz
  • Mechanical Q factor
Qms 4.9
  • Electrical Q factor
Qes 0.29
  • Total Q factor
Qts 0.27
  • Force Factor
Bl 7 Tm
  • Mechanical Resistance
Rms 0.5 Kg/s
  • Moving Mass
Mms 13 g
  • Effective Piston Area
Sd 95 cm^2
  • Equivalent Volume
Vas 28 ltrs
  • Sensitivity
2.83V/1m 85.5 dB



Power Handling



  • 100h RMS noise test
IEC 60 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
38 mm
  • Linear Excursion
+/- 6.5 mm
  • Max mech. excursion
+/- 9 mm

Frequency
Frequency

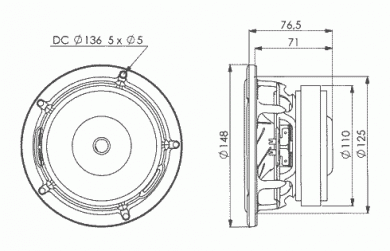

Mechanical Dimensions

Mechanical Dimensions




Drawing Dimensions

  • Outside Diameter
OD 148 mm
  • Magnet Diameter
MD 110 mm
  • Cutout Diameter
CD 125 mm
  • Interior Depth
ID 71 mm
  • Hole Diameter
HD 5 mm
  • Screw Circle Diameter
SD 136 mm
